AT49LV008 - 8-Megabit 1M x 8 3-volt Only Flash Memory

AT49LV008 Description

.
The AT49BV/LV008 is a 3-volt-only in-system Flash Memory device.

AT49LV008 Features

* Single Supply for Read and Write: 2.7V to 3.6V (BV), 3.0V to 3.6V (LV) Fast Read Access Time - 110 ns Internal Program Control and Timer 16K bytes Boot Block With Lockout Fast Erase Cycle Time - 10 seconds Byte

AT49LV008 Applications

* When RESET is at a logic high level, the device is in its standard operating mode. A low level on the RESET input halts the present device operation, puts the outputs of the device in a high impedance state, and reduces the current drawn by the part to a minimum. If the RESET pin makes a high to lo

📥 Download Datasheet

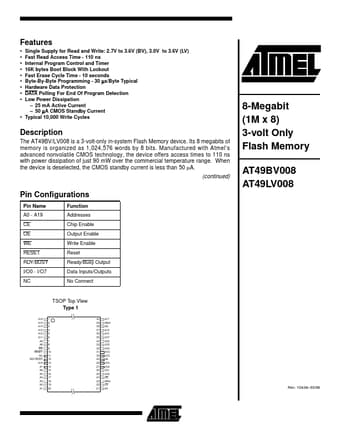

Preview of AT49LV008 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT49LV008
Manufacturer
ATMEL Corporation
File Size
117.66 KB
Datasheet
AT49LV008_ATMELCorporation.pdf
Description
8-Megabit 1M x 8 3-volt Only Flash Memory
