AT49LV001 1-megabit (128K x 8) Single 2.7-volt Battery-Voltage Flash Memory

The AT49BV/LV001(N)(T) is a 3-volt-only in-system reprogrammable Flash memory. Its 1 megabit of memory is organized as 131,072 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 70 ns with power dissipation of just 90 mW over the commer.

AT49LV001 Features

* Single Supply for Read and Write: 2.7 to 3.6V (BV), 3.0 to 3.6V (LV)

* Fast Read Access Time

* 70 ns

* Internal Program Control and Timer

* Sector Architecture

* One 16-Kbyte Boot Block with Programming Lockout

* Two 8-Kbyte Parameter Blocks

AT49BV001-ATMEL.pdf

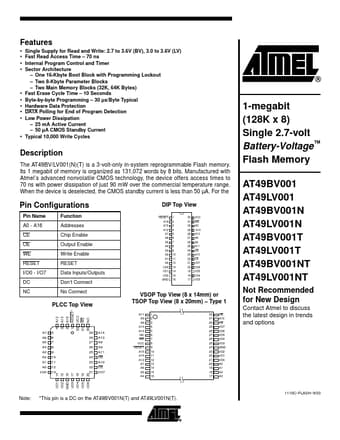

AT49LV001 Datasheet Preview — This datasheet PDF includes multiple part numbers: AT49LV001, AT49BV001. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AT49LV001, AT49BV001

Manufacturer:

ATMEL

File Size:

383.49 KB

Description:

1-megabit (128k x 8) single 2.7-volt battery-voltage flash memory.

Note:

This datasheet PDF includes multiple part numbers: AT49LV001, AT49BV001.
Please refer to the document for exact specifications by model.
