AT49LV002

2-Megabit 256K x 8 Single 2.7-Volt Battery-Voltage Flash Memory

AT49LV002 Features

* Single Supply for Read and Write: 2.7 to 3.6V (BV), 3.0 to 3.6V (LV)

* Fast Read Access Time

* 70 ns

* Internal Program Control and Timer

* Sector Architecture

* One 16K Bytes Boot Block with Programming Lockout

* Two 8K Bytes Parameter Block

AT49LV002 General Description

The AT49BV/LV002(N)(T) is a 3-volt-only in-system reprogrammable Flash Memory. Its 2 megabits of memory is organized as 262,144 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 70 ns with power dissipation of just 90 mW over the comme.

AT49LV002 Datasheet (438.66 KB)

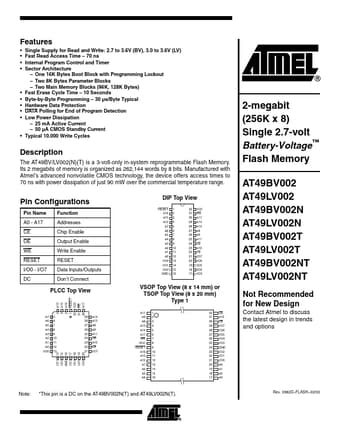

Preview of AT49LV002 PDF

Datasheet Details

Part number:

AT49LV002

Manufacturer:

ATMEL

File Size:

438.66 KB

Description:

2-megabit 256k x 8 single 2.7-volt battery-voltage flash memory.
