AT49LV1614A

16-megabit 1M x 16/2M x 8 3-volt Only Flash Memory

AT49LV1614A Features

* Single Voltage Read/Write Operation: 2.65V to 3.3V (BV), 3.0V to 3.6V (LV)

* Access Time

* 70 ns

* Sector Erase Architecture

* Thirty-one

AT49LV1614A General Description

The AT49BV/LV16X4A(T) is a 2.65- to 3.3-volt 16-megabit Flash memory organized as 1,048,576 words of 16 bits each or 2,097,152 bytes of 8 bits each. The x16 data appears on I/O0 - I/O15; the x8 data appears on I/O0 - I/O7. The memory is divided into 39 sectors for erase operations. The device is off.

AT49LV1614A Datasheet (410.49 KB)

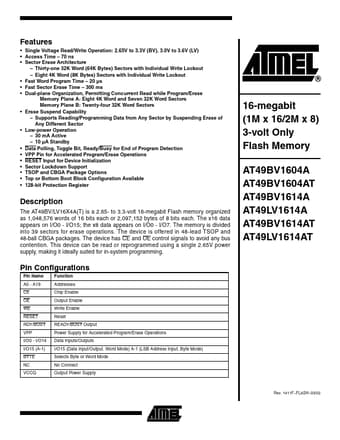

Preview of AT49LV1614A PDF

Datasheet Details

Part number:

AT49LV1614A

Manufacturer:

ATMEL Corporation

File Size:

410.49 KB

Description:

16-megabit 1m x 16/2m x 8 3-volt only flash memory.
