AT49LV161T

(AT49xV160 / AT49xV161) Flash Memory

AT49LV161T Features

* Single Voltage Read/Write Operation: 2.65V to 3.3V (BV), 3.0V to 3.6V (LV)

* Access Time

* 70 ns

* Sector Erase Architecture

* Thirty-one 32K Word (64K Bytes) Sectors with Individual Write Lockout

* Eight 4K Word (8K Byt

AT49LV161T General Description

The AT49BV/LV16X(T) is a 3.0-volt 16-megabit Flash memory organized as 1,048,576 words of 16 bits each or 2,097,152 bytes of 8 bits each. The x16 data appears on I/O0 - I/O15; the x8 data appears on I/O0 - I/O7. The memory is divided into 39 sectors for erase operations. The device is offered in a 4.

AT49LV161T Datasheet (334.46 KB)

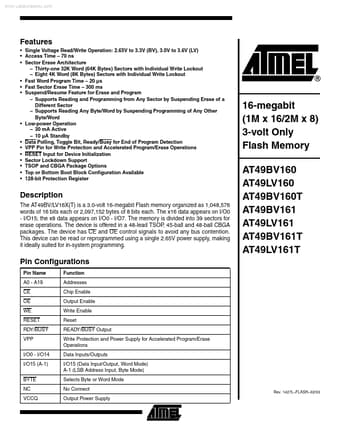

Preview of AT49LV161T PDF

Datasheet Details

Part number:

AT49LV161T

Manufacturer:

ATMEL Corporation

File Size:

334.46 KB

Description:

(at49xv160 / at49xv161) flash memory.
