AT49LW080 - 8-megabit and 4-megabit Firmware Hub Flash Memory

ATMEL Corporation

The AT49LW080 by ATMEL Corporation is a 8-megabit and 4-megabit Firmware Hub Flash Memory. Below is the official datasheet preview.

📥 Download Datasheet

AT49LW080 8-megabit and 4-megabit Firmware Hub Flash Memory by ATMEL Corporation - Datasheet Preview — Official preview page of the **AT49LW080** 8-megabit and 4-megabit Firmware Hub Flash Memory datasheet (ATMEL Corporation).

Datasheet Details

Part number	AT49LW080
Manufacturer	ATMEL Corporation
File Size	465.10 KB
Description	8-megabit and 4-megabit Firmware Hub Flash Memory
Datasheet	AT49LW080_ATMELCorporation.pdf

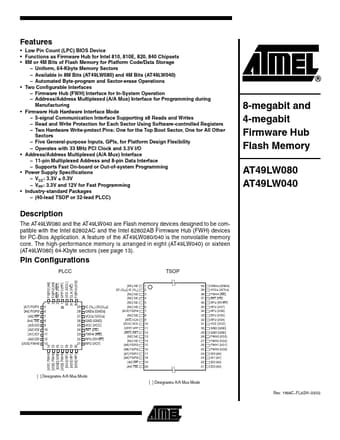

Additional preview pages of the AT49LW080 datasheet.

AT49LW080 Product details

Description

The AT49LW080 and the AT49LW040 are Flash memory devices designed to be compatible with the Intel 82802AC and the Intel 82802AB Firmware Hub (FWH) devices for PC-Bios Application.

Features

Low Pin Count (LPC) BIOS Device.
Functions as Firmware Hub for Intel 810, 810E, 820, 840 Chipsets.
8M or 4M Bits of Flash Memory for Platform Code/Data Storage.
Uniform, 64-Kbyte Memory Sectors.
Available in 8M Bits (AT49LW080) and 4M Bits (AT49LW040).
Automated Byte-program and Sector-erase Operations Two Configurable Interfaces.
Firmware Hub (FWH) Interface for In-System Operation.
Address/Address Multiplexed (A/A Mux) In.
