AT52SC1283J Datasheet - ATMEL Corporation

AT52SC1283J - (AT52SC1283J / AT52SC1284J) 128-Mbit Flash + 32-Mbit/64-Mbit

The AT52SC1283J/1284J memory module offers 128-megabit of nonvolatile Flash memory along with 32M/64M of PSRAM memory.

The combined memory is packaged in a single 8 x 10 x 1.2 mm CBGA package with 88 balls.

The Flash memory provides Asynchronous, Page and Burst Mode Read operation for the most optim

AT52SC1283J Features

* 128-Mbit Burst/Page Flash + 32-Mbit/64-Mbit PSRAM Single 88-ball (8 mm x 10 mm x 1.2 mm) CBGA Package 1.7V to 1.95V VCC 1.8V to 1.95V for VCCQ and PVCC 128-Mbit Flash Features

* 8M x 16 Organization

* High Performance

* Random Access T

AT52SC1283J_ATMELCorporation.pdf

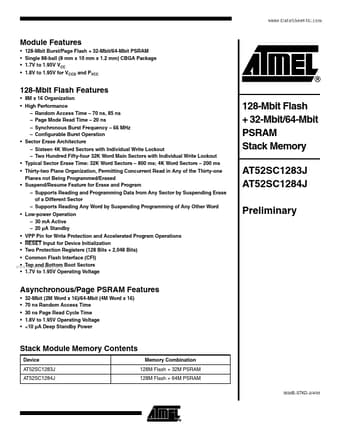

Preview of AT52SC1283J PDF
AT52SC1283J Datasheet Preview Page 2 AT52SC1283J Datasheet Preview Page 3

Datasheet Details

Part number:

AT52SC1283J

Manufacturer:

ATMEL Corporation

File Size:

759.03 KB

Description:

(at52sc1283j / at52sc1284j) 128-mbit flash + 32-mbit/64-mbit.
