AT77C102B - Thermal Fingerprint Sensor

ATMEL Corporation

The AT77C102B by ATMEL Corporation is a Thermal Fingerprint Sensor. Below is the official datasheet preview.

📥 Download Datasheet

AT77C102B Thermal Fingerprint Sensor by ATMEL Corporation - Datasheet Preview — Official preview page of the **AT77C102B** Thermal Fingerprint Sensor datasheet (ATMEL Corporation).

Datasheet Details

Part number	AT77C102B
Manufacturer	ATMEL Corporation
File Size	324.93 KB
Description	Thermal Fingerprint Sensor
Datasheet	AT77C102B_ATMELCorporation.pdf

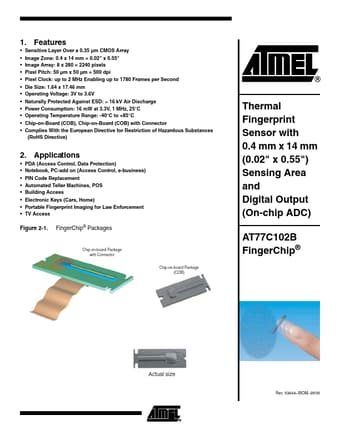

Additional preview pages of the AT77C102B datasheet.

AT77C102B Product details

Description

for Chip-on-Board Package: AT77C102B-CB01YV Name GND AVE AVO TPP TPE VCC GND RST PCLK OE ACKN De0 Do0 De1 Do1 De2 Do2 De3 Do3 FPL GND Type GND Analog output Analog output Power Digital input Power GND Digital input Digital input Digital input Digital output Digital output Digital output Digital output Digital output Digital output Digital output Digital output Digital output GND GND Pin Number 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 The die attach is connected to pins 1, 7 and 21

Features

Sensitive Layer Over a 0.35 µm CMOS Array Image Zone: 0.4 x 14 mm = 0.02" x 0.55" Image Array: 8 x 280 = 2240 pixels Pixel Pitch: 50 µm x 50 µm = 500 dpi Pixel Clock: up to 2 MHz Enabling up to 1780 Frames per Second Die Size: 1.64 x 17.46 mm Operating Voltage: 3V to 3.6V Naturally Protected Against ESD: > 16 kV Air Discharge Power Consumption: 16 mW at 3.3V, 1 MHz, 25°C Operat.
