AT77C104B

FingerChip Thermal Fingerprint Sweep Sensor

AT77C104B Features

* Thermal Sensitive Layer Over a 0.35 µm CMOS Array Image Zone: 0.4 x 11.6 mm Image Array: 8 × 232 = 1856 Pixels Pixel Pitch: 50 × 50 µm = 500 dpi Resolution On-c

AT77C104B General Description

This document describes the specifications of Atmel’s AT77C104B fingerprint sensor dedicated to PDA, cellular and smartphone applications. Based on FingerChip thermal technology, the AT77C104B is a linear sensor that captures fingerprint images by sweeping the finger over the sensing area. This prod.

AT77C104B Datasheet (300.02 KB)

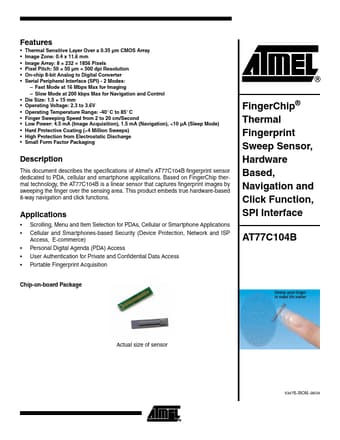

Preview of AT77C104B PDF

Datasheet Details

Part number:

AT77C104B

Manufacturer:

ATMEL Corporation

File Size:

300.02 KB

Description:

Fingerchip thermal fingerprint sweep sensor.
