AT86ZL3201

AT86ZL3201 Z-Link Controller Customized for IEEE 802.15.4 and ZigBee Wireless Systems

AT86ZL3201 Features

* High Performance, Low-power AVR® 8-bit Microcontroller

* Advanced RISC Architecture, Fully Static Operation

* 133 Powerful Instructions

* Most Single Clock Cycle

* 32 x 8 General Purpose Working Registers

* On-chip Two-cycle Multiplier 32 KBytes Exte

AT86ZL3201 General Description

The Atmel AT86ZL3201 Z-Link™ Controller is a low-power CMOS 8-bit microcontroller based on the AVR-enhanced RISC architecture. Similar in function to Atmel’s popular ATmega128 and other AVR standard microcontrollers, the Z-Link Controller is customized for systems supporting the new IEEE 802.15.4 st.

AT86ZL3201 Datasheet (117.13 KB)

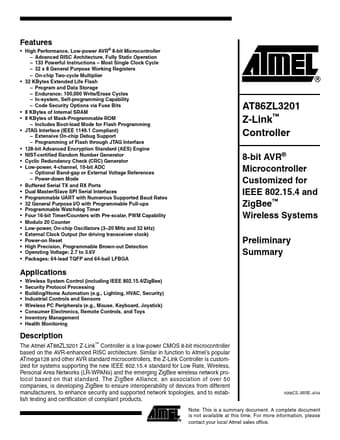

Preview of AT86ZL3201 PDF

Datasheet Details

Part number:

AT86ZL3201

Manufacturer:

ATMEL Corporation

File Size:

117.13 KB

Description:

At86zl3201 z-link controller customized for ieee 802.15.4 and zigbee wireless systems.
