ATA3741 - UHF ASK Receiver IC

ATMEL Corporation

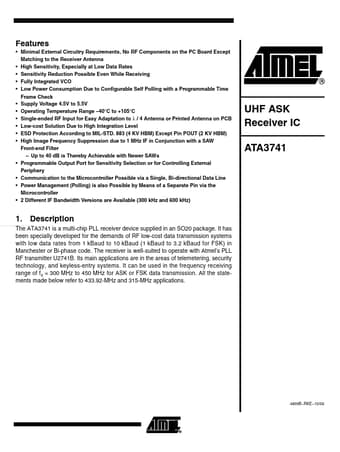

ATA3741 Datasheet Preview — Preview of ATA3741 PDF

Datasheet Details

Part number	ATA3741
Manufacturer	ATMEL ↗ Corporation
File Size	485.83 KB
Description	UHF ASK Receiver IC
Datasheet	ATA3741_ATMELCorporation.pdf

ATA3741 Product details

Description

www.DataSheet4U.com The ATA3741 is a multi-chip PLL receiver device supplied in an SO20 package.It has been specially developed for the demands of RF low-cost data transmission systems with low data rates from 1 kBaud to 10 kBaud (1 kBaud to 3.2 kBaud for FSK) in Manchester or Bi-phase code.The receiver is well-suited to operate with Atmel's PLL RF transmitter U2741B.Its main applications are in the areas of telemetering, security technology, and keyless-entry systems.It can be used in the

Features

Minimal External Circuitry Requirements, No RF Components on the PC Board Except.
Matching to the Receiver Antenna High Sensitivity, Especially at Low Data Rates Sensitivity Reduction Possible Even While Receiving Fully Integrated VCO Low Power Consumption Due to Configurable Self Polling with a Programmable Time Frame Check Supply Voltage 4.5V to 5.5V Operating Temperature Range.
