ATA2069 - Flasher

ATMEL Corporation

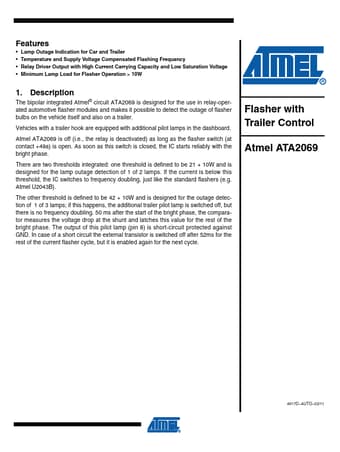

ATA2069 Datasheet Preview — Preview of ATA2069 PDF

Datasheet Details

Part number	ATA2069
Manufacturer	ATMEL ↗ Corporation
File Size	109.41 KB
Description	Flasher
Datasheet	ATA2069_ATMELCorporation.pdf

ATA2069 Product details

Description

The bipolar integrated Atmel® circuit ATA2069 is designed for the use in relay-operated automotive flasher modules and makes it possible to detect the outage of flasher bulbs on the vehicle itself and also on a trailer.

Features

Lamp Outage Indication for Car and Trailer.
Temperature and Supply Voltage Compensated Flashing Frequency.
Relay Driver Output with High Current Carrying Capacity and Low Saturation Voltage.
Minimum Lamp Load for Flasher Operation > 10W 1.
