ATA2536T - Low-voltage IR Receiver ASSP

ATMEL

📥 Download Datasheet

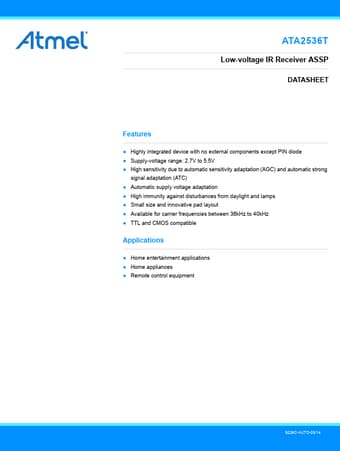

ATA2536T Datasheet Preview — Preview of ATA2536T PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ATA2536T
Manufacturer	ATMEL ↗
File Size	373.34 KB
Description	Low-voltage IR Receiver ASSP
Datasheet	ATA2536T-ATMEL.pdf

ATA2536T Product details

Description

The Atmel® IC ATA2536T is a complete IR receiver for data communication developed and optimized for use in carrierfrequency-modulated transmission applications.

Features

Highly integrated device with no external components except PIN diode.
Supply-voltage range: 2.7V to 5.5V.
High sensitivity due to automatic sensitivity adaptation (AGC) and automatic strong signal adaptation (ATC).
Automatic supply voltage adaptation.
High immunity against disturbances from daylight and lamps.
Small size and innovative pad layout.
Available for carrier frequencies between 36kHz to 40kHz.
TTL and CMOS compatible.
