ATA2525 - IR Receiver ASSP

ATMEL Corporation

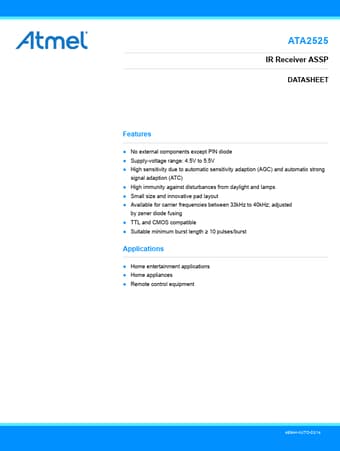

ATA2525 Datasheet Preview — Preview of ATA2525 PDF

Datasheet Details

Part number	ATA2525
Manufacturer	ATMEL ↗ Corporation
File Size	296.81 KB
Description	IR Receiver ASSP
Datasheet	ATA2525_ATMELCorporation.pdf

ATA2525 Product details

Description

The Atmel® IC ATA2525 is a complete IR receiver for data communication that was developed and optimized for use in carrier-frequency-modulated transmission applications.

Features

No external components except PIN diode.
Supply-voltage range: 4.5V to 5.5V.
High sensitivity due to automatic sensitivity adaption (AGC) and automatic strong signal adaption (ATC).
High immunity against disturbances from daylight and lamps.
Small size and innovative pad layout.
Available for carrier frequencies between 33kHz to 40kHz; adjusted by zener diode fusing.
TTL and CMOS compatible.
Suitable minimum burst length ≥ 10 pulses/burst.
