ATA5824 - UHF ASK/FSK Transceiver

Product Overview

ATMEL Corporation

Datasheet Details

Part number	ATA5824
Manufacturer	ATMEL Corporation
File Size	1.35 MB
Description	UHF ASK/FSK Transceiver
Datasheet	ATA5824 Datasheet
Note	This datasheet PDF includes multiple part numbers: ATA5824, ATA5823. Please refer to the document for exact specifications by model.
Additional preview pages of the ATA5824 datasheet.

Product details

Description

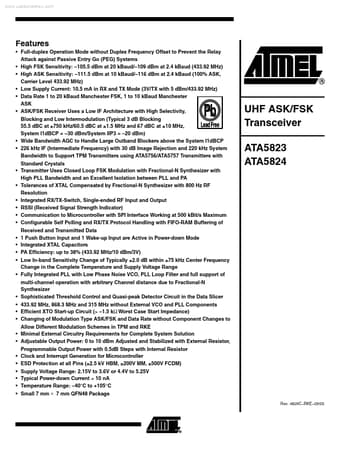

The ATA5823/ATA5824 is a highly integrated UHF ASK/FSK multi-channel half-duplex and full-duplex transceiver with low power consumption supplied in a small 7 mm × 7 mm QFN48 package.

Features

Full-duplex Operation Mode without Duplex Frequency Offset to Prevent the Relay.
Attack against Passive Entry Go (PEG) Systems High FSK Sensitivity:.
105.5 dBm at 20 kBaud/.
109 dBm at 2.4 kBaud (433.92 MHz) High ASK Sensitivity:.
111.5 dBm at 10 kBaud/.
116 dBm at 2.4 kBaud (100% ASK, Carrier Level 433.92 MHz) Low Supply Current: 10.5 mA in RX and TX Mode (3V/TX with 5 dBm/433.92 MHz) Data Rate 1 to 20 kBau.
