ATA5831

UHF ASK/FSK Transceiver

ATA5831 Features

* AVR® microcontroller core with 1Kbyte SRAM and 24Kbyte RF library in firmware (ROM)

* Atmel® ATA5831: 20Kbyte of user flash

* Atmel ATA5832: 20Kbyte of user ROM

* Atmel ATA5833: No user memory

* RF library in firmware only

* Supported frequency ranges

* Low-b

ATA5831 General Description

1.1 Introduction The Atmel® ATA5831/2/3 is a highly integrated, low-power UHF ASK/FSK RF transceiver with an integrated AVR® microcontroller. It is package and pin-to-pin compatible with the previous generation of RF devices (Atmel ATA5830N and Atmel ATA5780N). The Atmel ATA5831/2/3 is partitioned .

ATA5831 Datasheet (798.46 KB)

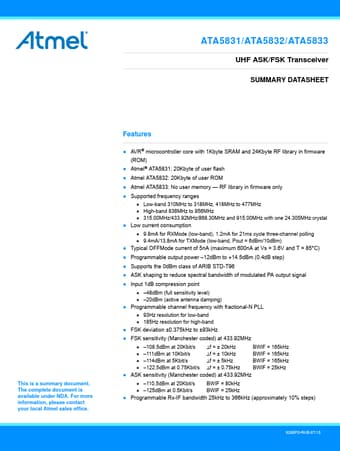

Preview of ATA5831 PDF

Datasheet Details

Part number:

ATA5831

Manufacturer:

ATMEL

File Size:

798.46 KB

Description:

Uhf ask/fsk transceiver.
ATA5831/ATA5832/ATA5833 UHF ASK/FSK Transceiver SUMMARY DATASHEET This is a summary document. The complete document is available under NDA. For more .
