ATA5811 - UHF ASK/FSK Transceiver

Product Overview

ATMEL

📥 Download Datasheet

ATA5811 UHF ASK/FSK Transceiver by ATMEL - Datasheet Preview — Datasheet preview – ATA5811

Datasheet Details

Part number	ATA5811
Manufacturer	ATMEL
File Size	664.99 KB
Description	UHF ASK/FSK Transceiver
Datasheet	ATA5811 Datasheet

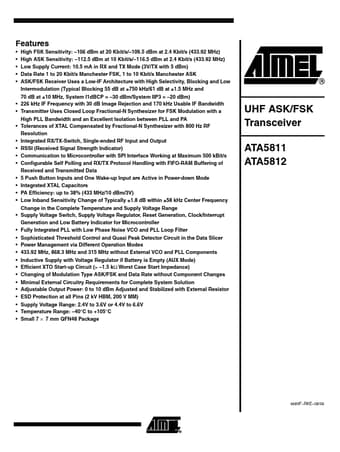

Additional preview pages of the ATA5811 datasheet.

Product details

Features

High FSK Sensitivity:.
106 dBm at 20 Kbit/s/.
109.5 dBm at 2.4 Kbit/s (433.92 MHz).
High ASK Sensitivity:.
112.5 dBm at 10 Kbit/s/.
116.5 dBm at 2.4 Kbit/s (433.92 MHz).
Low Supply Current: 10.5 mA in RX and TX Mode (3V/TX with 5 dBm).
Data Rate 1 to 20 Kbit/s Manchester FSK, 1 to 10 Kbit/s Manchester ASK.
ASK/FSK Receiver Uses a Low-IF Architecture with High Selectivity, Blocking and Low Intermodulation (Typical Blockin.
