ATA6405

12/24V SYSTEM POWER SUPPLY IC

ATA6405 Features

* Input Voltage: 8 V to 40 V Output Voltage Linear Regulator: 5 V/50 mA/3 mA ON_NOFF (High Active) Input Window Watchdog OFF Mode Quiescent current < 10 µA Standby Mode Quiescent Current < 30 µA Temperature Range

ATA6405 General Description

The ATA6405 is a fully integrated system voltage supply IC. The device is designed for the 12/24 V board voltage system in a motor vehicle. In order to minimize power consumption, a switching regulator generates a voltage for supplying the internal linear regulator with a 5 V output voltage for micr.

ATA6405 Datasheet (308.08 KB)

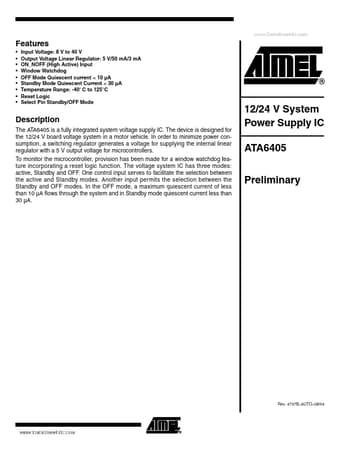

Preview of ATA6405 PDF

Datasheet Details

Part number:

ATA6405

Manufacturer:

ATMEL Corporation

File Size:

308.08 KB

Description:

12/24v system power supply ic.
