ATR7040

WDCT Power AMplifier

ATR7040 Features

* Frequency Range 5 GHz to 6 GHz Pout 25 dBm at 5.8 GHz Gain Typically 30 dB Pin Typically 0 dBm VCC 2.7V to 3.8V Power Consumption in Power-down Mode Typically < 1 µA Package: QFN16 3 mm × 3 mm 5.8 GHz WDCT Power Amplifier ATR7040

ATR7040 General Description

1.1 Process This 5-GHz power amplifier (PA) is designed using Atmel’s Silicon-Germanium (SiGe) process and provides high efficiency. 1.2 Circuitry The PA, ATR7040, consists of a three-stage amplifier with a typical output power of 25 dBm. The output stage was implemented using an open-collector s.

ATR7040 Datasheet (139.92 KB)

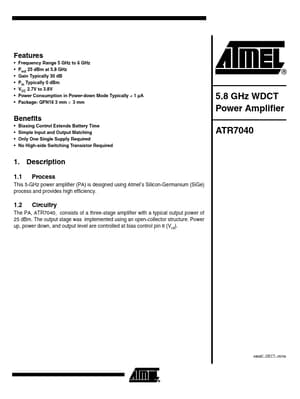

Preview of ATR7040 PDF

Datasheet Details

Part number:

ATR7040

Manufacturer:

ATMEL Corporation

File Size:

139.92 KB

Description:

Wdct power amplifier.
