T6801

Single-channel Driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Panasonic Electronic Components AXT680124 CONN HDR 80POS SMD GOLD DigiKey 1411 1000 units
$1.39

T6801 Datasheet (220.62 KB)

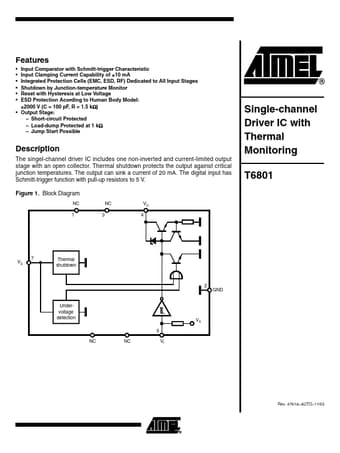

Preview of T6801 PDF Datasheet

Datasheet Details

Part number:

T6801

Manufacturer:

ATMEL Corporation

File Size:

220.62 KB

Description:

Single-channel driver

T6801 Features

* Input Comparator with Schmitt-trigger Characteristic Input Clamping Current Capability of ±10 mA Integrated Protection Cells (EMC, ESD, RF) Dedicated to All Input Stages Shutdown by Junction-temperature Monitor Reset with Hysteresis at Low

T6801 General Description

The singel-channel driver IC includes one non-inverted and current-limited output stage with an open collector. Thermal shutdown protects the output against critical junction temperatures. The output can sink a current of 20 mA. The digital input has Schmitt-trigger function with pull-up resistors t.
