T6828 Datasheet, Driver, ATMEL Corporation

T6828 Features

  • Driver
  • Supply Voltage up to 40 V RDSon Typically 0.5 Ω at 25°C

PDF File Details

Part number:

T6828

Manufacturer:

ATMEL Corporation

File Size:

212.65kb

Download:

📄 Datasheet

Description:

(t6818 / t6828) triple halfbridge dmos output driver. The T6818/T6828 are fully protected driver interfaces designed in 0.8-µm BCDMOS technology. They are used to control up to 3 differen

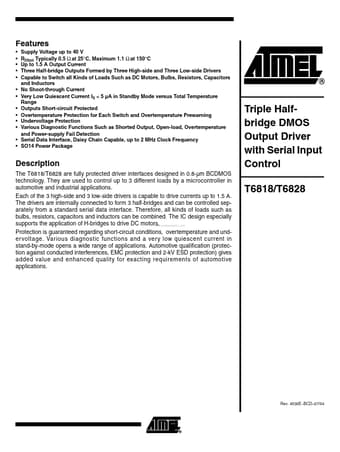

Datasheet Preview: T6828 📥 Download PDF (212.65kb)
Page 2 of T6828 Page 3 of T6828

T6828 Application

  • Applications Each of the 3 high-side and 3 low-side drivers is capable to drive currents up to 1.5 A. The drivers are internally connected to form
