(T6818 / T6828) Triple Halfbridge DMOS OUTPUT DRIVER

T6818 Features

* Supply Voltage up to 40 V RDSon Typically 0.5 Ω at 25°C, Maximum 1.1 Ω at 150°C Up to 1.5 A Output Current Three Half-bridge Outputs Formed by Three High-side and Three L

T6818 General Description

The T6818/T6828 are fully protected driver interfaces designed in 0.8-µm BCDMOS technology. They are used to control up to 3 different loads by a microcontroller in automotive and industrial applications. Each of the 3 high-side and 3 low-side drivers is capable to drive currents up to 1.5 A. The dr.

T6818 Datasheet (212.65 KB)

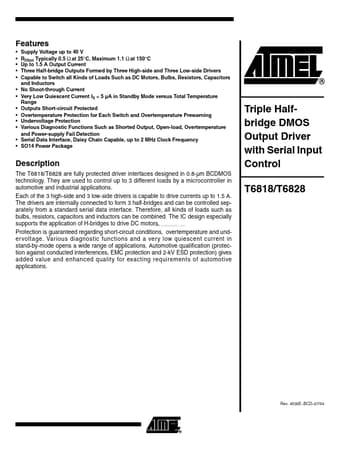

T6818 Datasheet Preview — Preview of T6818 PDF
