T6829

(T6819 / T6829) Dual Triple DMOS Output Driver

T6829 Features

* Supply Voltage up to 40 V RDSon Typically 0.5 Ω at 25°C, Maximum 1 Ω at 150°C Up to 1.5 A Output Current Three High-side and Three Low-side Drivers Usable as Si

T6829 General Description

The T6819/T6829 are fully protected driver interfaces designed in 0.8 µm BCDMOS technology. They are used to control up to six different loads by a microcontroller in automotive and industrial applications. Each of the three high-side and three low-side drivers is capable to drive currents up to 1.5.

T6829 Datasheet (357.49 KB)

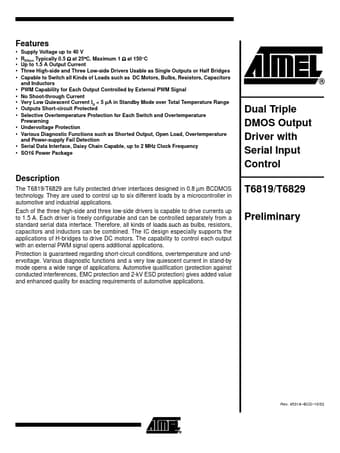

Preview of T6829 PDF

Datasheet Details

Part number:

T6829

Manufacturer:

ATMEL Corporation

File Size:

357.49 KB

Description:

(t6819 / t6829) dual triple dmos output driver.
