29C020

2-Megabit 256K x 8 5-volt Only CMOS Flash Memory

29C020 Features

* Fast Read Access Time - 90 ns 5-Volt-Only Reprogramming Sector Program Operation Single Cycle Reprogram (Erase and Program) 1024 Sectors (256 bytes/sector) Internal Add

29C020 General Description

The AT29C020 is a 5-volt-only in-system Flash programmable and erasable read only memory (PEROM). Its 2 megabits of memory is organized as 262,144 bytes. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 90 ns with power dissipation of just 220 mW over.

29C020 Datasheet (257.47 KB)

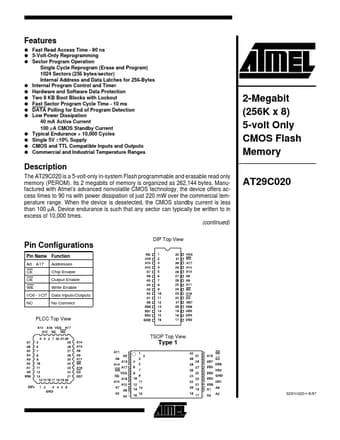

Preview of 29C020 PDF

Datasheet Details

Part number:

29C020

Manufacturer:

ATMEL

File Size:

257.47 KB

Description:

2-megabit 256k x 8 5-volt only cmos flash memory.
