29C512

512K 64K x 8 5-volt Only CMOS Flash Memory

29C512 Features

* Fast Read Access Time

* 70 ns

* 5-volt Only Reprogramming

* Sector Program Operation

* Single Cycle Reprogram (Erase and Program)

* 512 Sectors (128 Bytes/Sector)

* Internal Address and Data Latches for 128 Bytes Internal Program Control and

29C512 General Description

The AT29C512 is a 5-volt only in-system Flash programmable and erasable read only memory (PEROM). Its 512K of memory is organized as 65,536 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 70 ns with power dissipation of just 275 mW o.

29C512 Datasheet (284.53 KB)

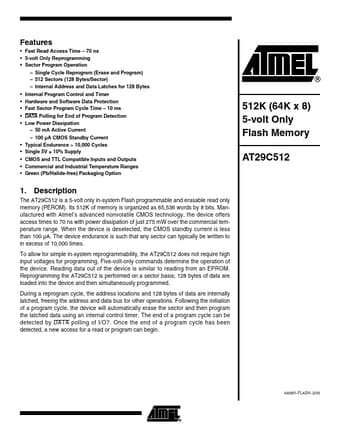

Preview of 29C512 PDF

Datasheet Details

Part number:

29C512

Manufacturer:

ATMEL

File Size:

284.53 KB

Description:

512k 64k x 8 5-volt only cmos flash memory.
