29C256 Datasheet - ATMEL

29C256 256K 32K x 8 5-volt Only CMOS Flash Memory

The AT29C256 is a five-volt-only in-system Flash programmable and erasable read only memory (PEROM). Its 256K of memory is organized as 32,768 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 70 ns with power dissipation of just 275 m.

29C256 Features

* Fast Read Access Time

* 70 ns

* 5-volt Only Reprogramming

* Page Program Operation

* Single Cycle Reprogram (Erase and Program)

* Internal Address and Data Latc

29C256_ATMELCorporation.pdf

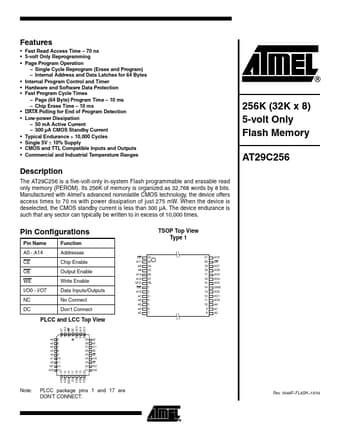

Preview of 29C256 PDF
29C256 Datasheet Preview Page 2 29C256 Datasheet Preview Page 3

Datasheet Details

Part number:

29C256

Manufacturer:

ATMEL

File Size:

343.57 KB

Description:

256k 32k x 8 5-volt only cmos flash memory.
