29C516E

16 Bit Flow Through EDAC Error Detection And Correction unit

29C516E Features

* D D D D D D D D Very Low Power CMOS 16

* Bit operation with 6 or 8 Check Bits Fast Error Detection : 31 ns (max.) Fast Error Correction : 32 ns (max.) Corrects all Single

* Bit Errors Detects all Double

* Bit Errors Detects some Multi

* Bit Errors Detects Chip Errors (x1, x4

29C516E General Description

Table 1: Name Pin Description I/O Active Description Buses U1D[0..15] U2D[0..15] ΜD[0..15] ΜC[0..7] Error Flags CERR NCERR 26 25 O O Low Low Correctable Error Uncorrectable Error 53,49..47,45..42,40..37,35..33,28 23..20,18..15,13..10,8..5 59..62,64..67,69..72,74..77 83..86,88..91 I/O
* I/O
* .

29C516E Datasheet (94.70 KB)

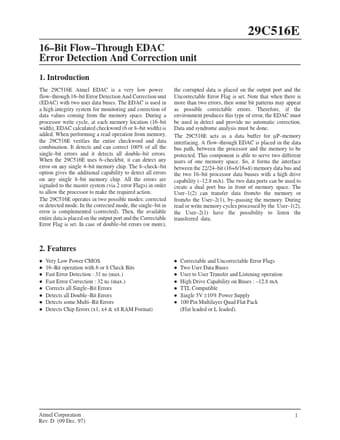

Preview of 29C516E PDF

Datasheet Details

Part number:

29C516E

Manufacturer:

ATMEL

File Size:

94.70 KB

Description:

16 bit flow through edac error detection and correction unit.
29C516E 16

*Bit Flow

*Through EDAC Error Detection And Correction unit 1. Introduction The 29C516E Atmel EDAC is a very low power flow
