2SC5344 - NPN TRANSISTOR

Product Overview

AUK corp

Part number	2SC5344
Manufacturer	AUK corp
File Size	215.44 KB
Description	NPN TRANSISTOR
Datasheet	2SC5344 Datasheet
Additional preview pages of the 2SC5344 datasheet.

Audio power amplifier application

High hFE : hFE=100~320.

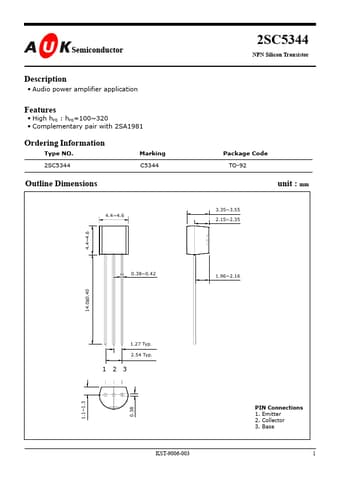

Complementary pair with 2SA1981 Ordering Information Type NO. 2SC5344 Marking C5344 Package Code TO-92 Outline Dimensions 3.35~3.55 4.4~4.6 2.15~2.35 unit : mm 4.4~4.6 0.38~0.42 1.96~2.16 14.0±0.40 1.27 Typ. 2.54 Typ. 1 2 3 1.1~1.3 PIN Connections 1. Emitter 2. Collector 3. Base 0.38 KST-9006-003 1 2SC5344 Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emitter voltage Emitter-Base voltage Collector current Colle.
