2SC5342S - NPN TRANSISTOR

Product Overview

AUK corp

Part number	2SC5342S
Manufacturer	AUK corp
File Size	212.94 KB
Description	NPN TRANSISTOR
Datasheet	2SC5342S Datasheet

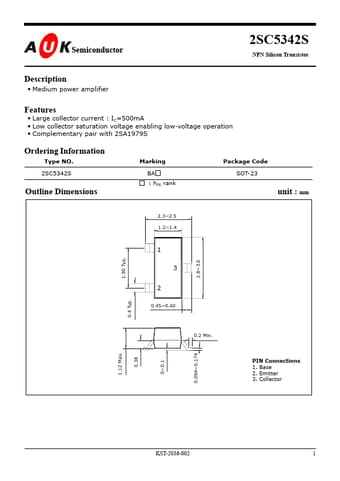

Additional preview pages of the 2SC5342S datasheet.

Medium power amplifier

Large collector current : IC=500mA.
Low collector saturation voltage enabling low-voltage operation.
Complementary pair with 2SA1979S Ordering Information Type NO. 2SC5342S Marking BA : hFE rank Package Code SOT-23 Outline Dimensions unit : mm 2.3~2.5 1.2~1.4 1 1.90 Typ. 3 2 0.4 Typ. 0.45~0.60 0.2 Min. 1.12 Max. 0.094~0.174 0.38 2.8~3.0 PIN Connections 1. Base 2. Emitter 3. Collector KST-2036-002 0~0.1 1 2SC5342S Absolute maximum ratings Characteristic.
