2SC5342U

NPN TRANSISTOR

2SC5342U Features

* Large collector current : IC=500mA

* Low collector saturation voltage enabling low-voltage operation

* Complementary pair with 2SA1979U Ordering Information Type NO. 2SC5342U Marking B : hFE rank Package Code SOT-323 Outline Dimensions unit : mm 2.0~2.2 1.2~1.3 1 1.8~2

2SC5342U Datasheet (212.32 KB)

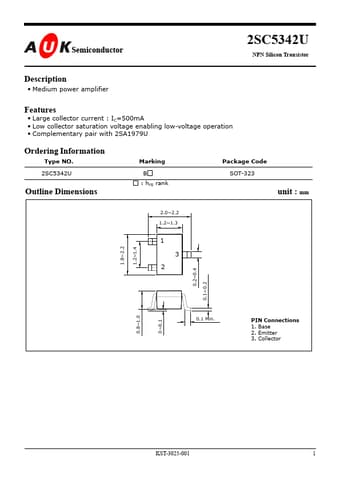

Preview of 2SC5342U PDF

Datasheet Details

Part number:

2SC5342U

Manufacturer:

AUK corp

File Size:

212.32 KB

Description:

Npn transistor.
