2SC5342UF

NPN TRANSISTOR

2SC5342UF Features

* Large collector current : IC=500mA

* Low collector saturation voltage enabling low-voltage operation

* Complementary pair with 2SA1979UF Ordering Information Type NO. 2SC5342UF Marking B : hFE rank Package Code SOT-323F Outline Dimensions 2.0~2.2 0.30~0.40 1.2~1.4 unit :

2SC5342UF Datasheet (93.50 KB)

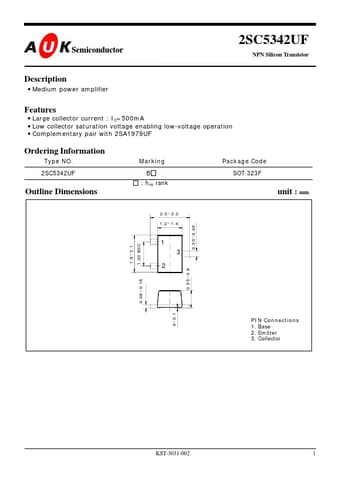

Preview of 2SC5342UF PDF

Datasheet Details

Part number:

2SC5342UF

Manufacturer:

AUK corp

File Size:

93.50 KB

Description:

Npn transistor.
