2SC5342M - NPN TRANSISTOR

Product Overview

AUK corp

Part number	2SC5342M
Manufacturer	AUK corp
File Size	216.77 KB
Description	NPN TRANSISTOR
Datasheet	2SC5342M Datasheet

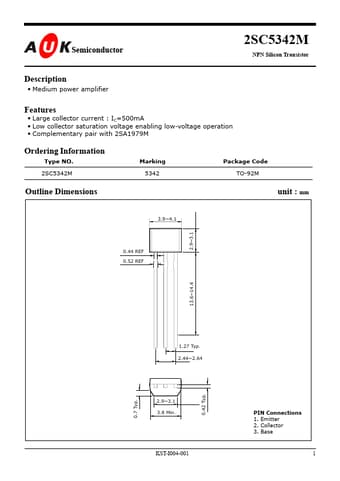

Additional preview pages of the 2SC5342M datasheet.

Medium power amplifier

Large collector current : IC=500mA.
Low collector saturation voltage enabling low-voltage operation.
Complementary pair with 2SA1979M Ordering Information Type NO. 2SC5342M Marking 5342 Package Code TO-92M Outline Dimensions 3.9~4.1 2.9~3.1 unit : mm 0.44 REF 0.52 REF 14.0±0.40 1.27 Typ. 2.44~2.64 1 2 3 13.6~14.4 0.7 Typ. 2.9~3.1 3.8 Min. 0.42 Typ. PIN Connections 1. Emitter 2. Collector 3. Base KST-I004-001 1 2SC5342M Absolute maximum ratings Characterist.
