2SC5344N

NPN Silicon Transistor

2SC5344N Features

* www.DataSheet4U.com

* High DC current gain : hFE=100~320

* Complementary pair with 2SA1981N Ordering Information Type NO. 2SC5344N Marking C5344 Package Code TO-92N Outline Dimensions unit : mm 4.20~4.40 4.20~4.40 2.25 Max. 0.52 Max. 13.50~14.50 0.90 Max. 1.27 Typ. 2.14 Typ.

2SC5344N Datasheet (255.59 KB)

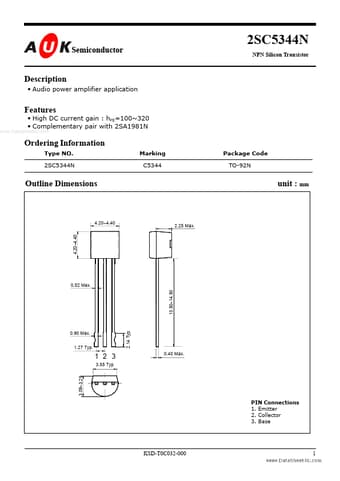

Preview of 2SC5344N PDF

Datasheet Details

Part number:

2SC5344N

Manufacturer:

AUK

File Size:

255.59 KB

Description:

Npn silicon transistor.
