2SC5345 - NPN TRANSISTOR

Product Overview

AUK corp

Part number	2SC5345
Manufacturer	AUK corp
File Size	123.48 KB
Description	NPN TRANSISTOR
Datasheet	2SC5345 Datasheet

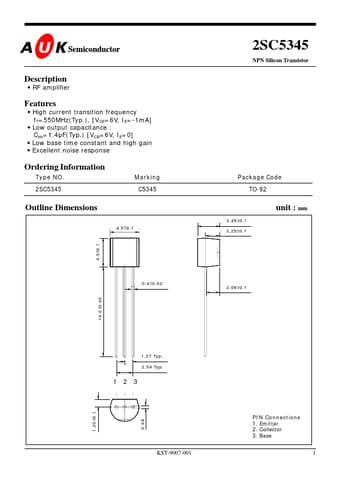

Additional preview pages of the 2SC5345 datasheet.

RF amplifier

High current transition frequency fT=550MHz(Typ. ), [VCE=6V, IE=-1mA].
Low output capacitance : Cob=1.4pF(Typ. ) [VCB=6V, IE=0].
Low base time constant and high gain.
Excellent noise response Ordering Information Type NO. 2SC5345 Marking C5345 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm 4.5±0.1 0.4±0.02 14.0±0.40 2.06±0.1 1.27 Typ. 2.54 Typ. 1 2 3 1.20±0.1 PIN Connections 1. Emitter 2. Collector 3. Base 0.38 KST-9007-00.
