S7912PIC - Fixed-Negative-Voltage Regulator

Product Overview

AUK corp

📥 Download Datasheet

S7912PIC Fixed-Negative-Voltage Regulator by AUK corp - Datasheet Preview — Datasheet preview – S7912PIC

Datasheet Details

Part number	S7912PIC
Manufacturer	AUK corp
File Size	271.47 KB
Description	Fixed-Negative-Voltage Regulator
Datasheet	S7912PIC Datasheet

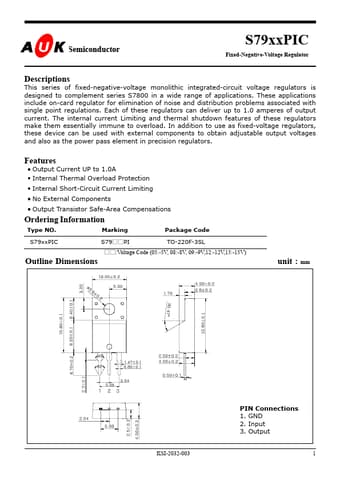

Additional preview pages of the S7912PIC datasheet.

Product details

Description

This series of fixed-negative-voltage monolithic integrated-circuit voltage regulators is designed to complement series S7800 in a wide range of applications.

Features

of these regulators make them essentially immune to overload. In addition to use as fixed-voltage regulators, these device can be used with external components to obtain adjustable output voltages and also as the power pass element in precision regulators. Features.
Output Current UP to 1.0A.
Internal Thermal Overload Protection.
Internal Short-Circuit Current Limiting.
No External Components.
Output Transistor Safe-Area Compensations Ordering Infor.
