S7915PI - Fixed-Negative-Voltage Regulator

Product Overview

AUK corp

📥 Download Datasheet

S7915PI Fixed-Negative-Voltage Regulator by AUK corp - Datasheet Preview — Datasheet preview – S7915PI

Datasheet Details

Part number	S7915PI
Manufacturer	AUK corp
File Size	270.14 KB
Description	Fixed-Negative-Voltage Regulator
Datasheet	S7915PI Datasheet

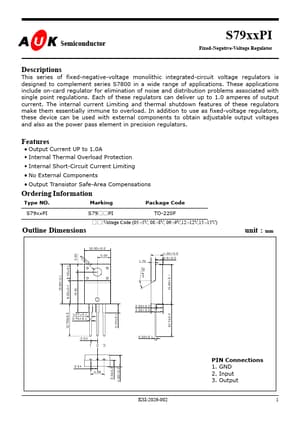

Additional preview pages of the S7915PI datasheet.

Product details

Description

This series of fixed-negative-voltage monolithic integrated-circuit voltage regulators is designed to complement series S7800 in a wide range of applications.

Features

of these regulators make them essentially immune to overload. In addition to use as fixed-voltage regulators, these device can be used with external components to obtain adjustable output voltages and also as the power pass element in precision regulators. Features.
Output Current UP to 1.0A.
Internal Thermal Overload Protection.
Internal Short-Circuit Current Limiting.
No External Components.
Output Transistor Safe-Area Compensations Ordering Infor.
