SBC328 - PNP Silicon Transistor

AUK corp

📥 Download Datasheet

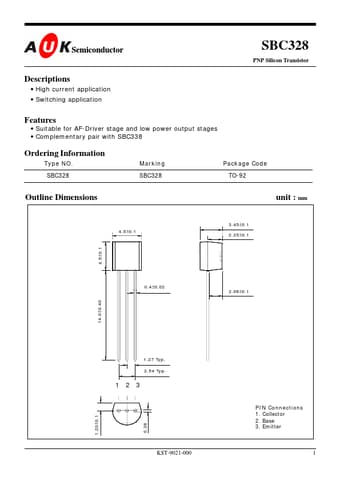

SBC328 Datasheet Preview — Preview of SBC328 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SBC328
Manufacturer	AUK corp
File Size	85.18 KB
Description	PNP Silicon Transistor
Datasheet	SBC328_AUKcorp.pdf

SBC328 Product details

Description

High current application Switching application

Features

Suitable for AF-Driver stage and low power output stages.
Complementary pair with SBC338 Ordering Information Type NO. SBC328 Marking SBC328 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm 4.5±0.1 0.4±0.02 14.0±0.40 2.06±0.1 1.27 Typ. 2.54 Typ. 1 2 3 1.20±0.1 0.38 PIN Connections 1. Collector 2. Base 3. Emitter KST-9021-000 1 SBC328 (Ta=25°C) Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emitter voltage Emitte.
