SBC546 - NPN Silicon Transistor

AUK corp

📥 Download Datasheet

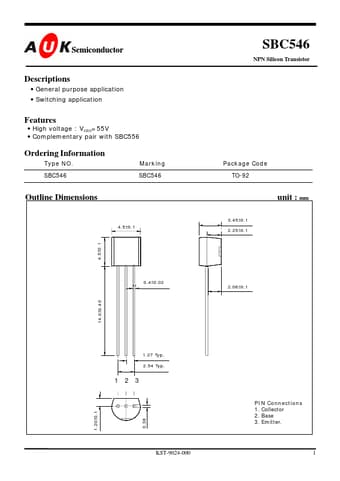

SBC546 Datasheet Preview — Preview of SBC546 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SBC546
Manufacturer	AUK corp
File Size	88.58 KB
Description	NPN Silicon Transistor
Datasheet	SBC546_AUKcorp.pdf

SBC546 Product details

Description

General purpose application Switching application

Features

High voltage : VCEO=55V.
Complementary pair with SBC556 Ordering Information Type NO. SBC546 Marking SBC546 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm 4.5±0.1 0.4±0.02 2.06±0.1 14.0±0.40 1.27 Typ. 2.54 Typ. 1 2 3 1.20±0.1 0.38 PIN Connections 1. Collector 2. Base 3. Emitter. KST-9024-000 1 SBC546 Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emitter voltage Emitter-base voltage Collector current Collector.
