SBC548 - NPN Silicon Transistor

AUK corp

📥 Download Datasheet

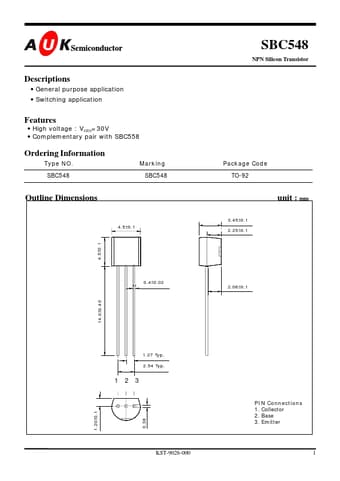

SBC548 Datasheet Preview — Preview of SBC548 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SBC548
Manufacturer	AUK corp
File Size	84.30 KB
Description	NPN Silicon Transistor
Datasheet	SBC548_AUKcorp.pdf

SBC548 Product details

Description

General purpose application Switching application

Features

High voltage : VCEO=30V.
Complementary pair with SBC558 Ordering Information Type NO. SBC548 Marking SBC548 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm 4.5±0.1 0.4±0.02 2.06±0.1 14.0±0.40 1.27 Typ. 2.54 Typ. 1 2 3 1.20±0.1 0.38 PIN Connections 1. Collector 2. Base 3. Emitter KST-9026-000 1 SBC548 Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emitter voltage Emitter-Base voltage Collector current Collector.
