SBT2222A - NPN Silicon Transistor

AUK corp

Datasheet Details

General purpose application Switching application

Low Leakage current.
Low collector saturation voltage enabling low voltage operation.

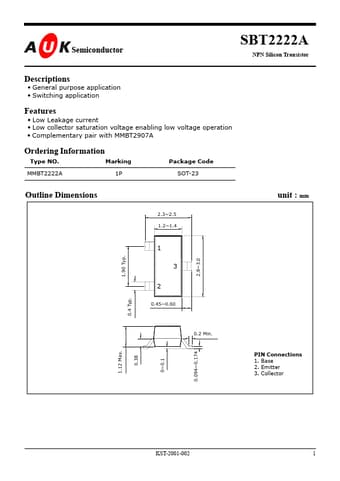

Complementary pair with MMBT2907A Ordering Information Type NO. MMBT2222A Marking 1P Package Code SOT-23 Outline Dimensions 2.3~2.5 1.2~1.4 unit : mm 1 1.90 Typ. 3 2 0.4 Typ. 0.45~0.60 0.2 Min. 1.12 Max. 0.094~0.174 2.8~3.0 PIN Connections 1. Base 2. Emitter 3. Collector 0.38 KST-2001-002 0~0.1 1 SBT2222A Absolute maximum ratings Characteristic Collector-Base voltage C.
