SBT2222AU

NPN Silicon Transistor

SBT2222AU Features

* Low Leakage current

* Low collector saturation voltage enabling low voltage operation

* Complementary pair with SBT2907AU Ordering Information Type NO. SBT2222AU Marking IQ Package Code SOT-323 Outline Dimensions 2.0~2.2 1.2~1.3 unit : mm 1 1.8~2.2 1.2~1.4 3 0.2~0.4 2

SBT2222AU Datasheet (191.52 KB)

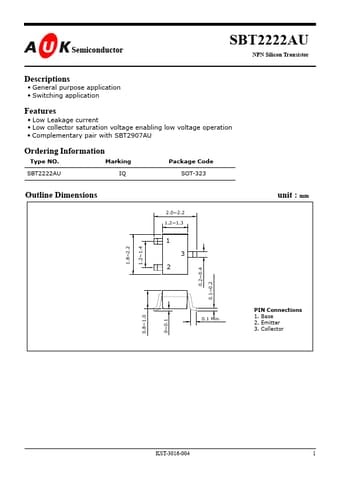

Preview of SBT2222AU PDF

Datasheet Details

Part number:

SBT2222AU

Manufacturer:

AUK corp

File Size:

191.52 KB

Description:

Npn silicon transistor.
