SBT2222AF - NPN Silicon Transistor

AUK corp

Datasheet Details

General purpose application Switching application

Low Leakage current.
Low collector saturation voltage enabling low voltage operation.

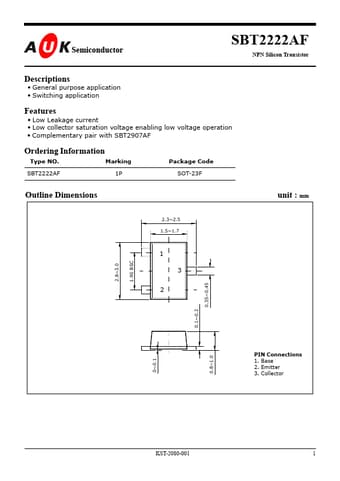

Complementary pair with SBT2907AF Ordering Information Type NO. SBT2222AF Marking 1P Package Code SOT-23F Outline Dimensions 2.3~2.5 1.5~1.7 unit : mm 1 1.90 BSC 2.8~3.0 3 2 0.35~0.45 0.1~0.2 PIN Connections 1. Base 2. Emitter 3. Collector KST-2080-001 0.8~1.0 0~0.1 1 SBT2222AF Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emitter voltage Emitter.
