SBT2222F - NPN Silicon Transistor

AUK corp

Datasheet Details

General purpose application Switching application

Low Leakage current.
Low collector saturation voltage enabling low voltage operation.

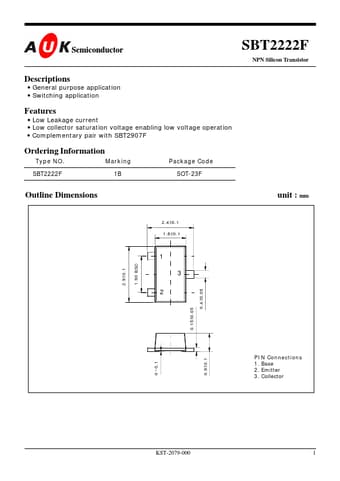

Complementary pair with SBT2907F Ordering Information Type NO. SBT2222F Marking 1B Package Code SOT-23F Outline Dimensions 2.4±0.1 1.6±0.1 unit : mm 1 2.9±0.1 1.90 BSC 3 0.4±0.05 2 0.15±0.05 PIN Connections 1. Base 2. Emitter 3. Collector KST-2079-000 0.9±0.1 0~0.1 1 SBT2222F Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emitter voltage Emitter-.
