SDB20100DI - DUAL COMMON CATHODE SCHOTTKY RECTIFIER

AUK

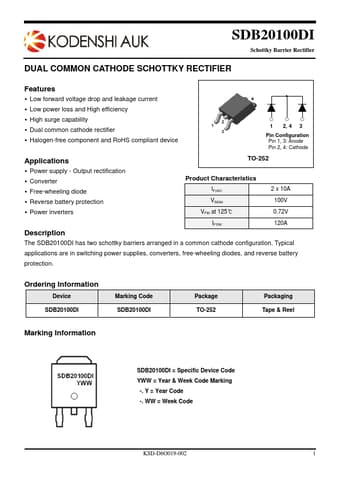

SDB20100DI Datasheet Preview — Preview of SDB20100DI PDF

Datasheet Details

Part number	SDB20100DI
Manufacturer	AUK
File Size	162.42 KB
Description	DUAL COMMON CATHODE SCHOTTKY RECTIFIER
Datasheet	SDB20100DI-AUK.pdf

SDB20100DI Product details

Description

IFSM 120A The SDB20100DI has two schottky barriers arranged in a common cathode configuration.Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.Ordering Information Device SDB20100DI Marking Code SDB20100DI Package TO-252 Packaging Tape & Reel Marking Information SDB20100DI = Specific Device Code YWW = Year & Week Code Marking

Features

Low forward voltage drop and leakage current.
Low power loss and High efficiency.
High surge capability.
Dual common cathode rectifier.
Halogen-free component and RoHS compliant device 1 2, 4 3 Pin Configuration Pin 1, 3: Anode Pin 2, 4: Cathode.
