SDB20150DI - DUAL COMMON CATHODE SCHOTTKY RECTIFIER

AUK

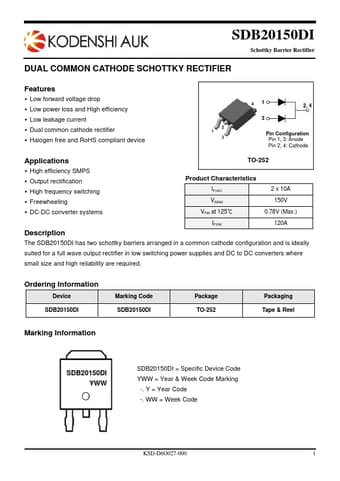

SDB20150DI Datasheet Preview — Preview of SDB20150DI PDF

Datasheet Details

Part number	SDB20150DI
Manufacturer	AUK
File Size	188.00 KB
Description	DUAL COMMON CATHODE SCHOTTKY RECTIFIER
Datasheet	SDB20150DI-AUK.pdf

SDB20150DI Product details

Description

IFSM 120A The SDB20150DI has two schottky barriers arranged in a common cathode configuration and is ideally suited for a full wave output rectifier in low switching power supplies and DC to DC converters where small size and high reliability are required.Ordering Information Device SDB20150DI Marking Code SDB20150DI Package TO-252 Packaging Tape & Reel Marking Information SDB20150DI YWW SDB20150DI = Specific Device Code YW

Features

Low forward voltage drop.
Low power loss and High efficiency.
Low leakage current.
Dual common cathode rectifier.
Halogen free and RoHS compliant device 1 2, 4 3 Pin Configuration Pin 1, 3: Anode Pin 2, 4: Cathode.
