SDB2045PI

LOW VOLTAGE SCHOTTKY RECTIFIER

SDB2045PI Features

* Low forward voltage drop and leakage current

* Low power loss and High efficiency

* ESD capability

* Dual common cathode rectifier

* Full lead (Pb)-free and RoHS compliant device 123 12 3 Pin 1, 3: Anode Pin 2: Cathode Applications

* Power supply - Output rectification

SDB2045PI General Description

The SDB2045PI has two schottky barriers arranged in a common cathode configuration. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection Ordering Information Device SDB2045PI Marking Code SDB2045 Package TO-220F-3L Packaging Tu.

SDB2045PI Datasheet (298.50 KB)

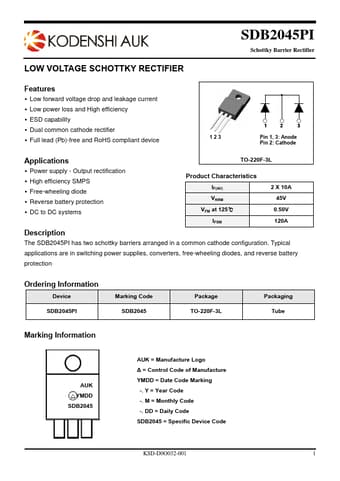

Preview of SDB2045PI PDF

Datasheet Details

Part number:

SDB2045PI

Manufacturer:

KODENSHI KOREA

File Size:

298.50 KB

Description:

Low voltage schottky rectifier.
