SDB20100PR Datasheet, Rectifier, AUK

SDB20100PR Features

  • Rectifier y Low forward voltage drop and leakage current y Low power loss and High efficiency y High surge capability y Dual common anode rectifier y Full lead(Pb)-free component and RoHS complia

PDF File Details

Part number:

SDB20100PR

Manufacturer:

AUK

File Size:

298.93kb

Download:

📄 Datasheet

Description:

Dual common anode schottky rectifier. The SDB20100PR has two schottky barriers arranged in a common anode configuration. Typical applications are in switching power supp

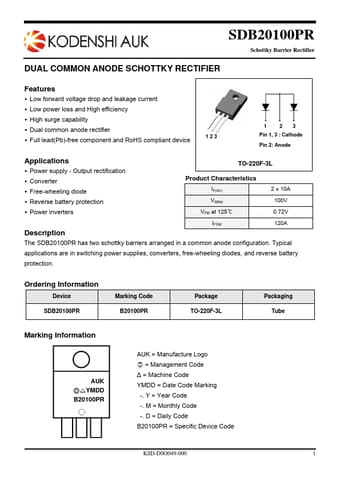

Datasheet Preview: SDB20100PR 📥 Download PDF (298.93kb)
Page 2 of SDB20100PR Page 3 of SDB20100PR

SDB20100PR Application

  • Applications y Power supply - Output rectification y Converter y Free-wheeling diode y Reverse battery protection TO-220F-3L Product Characteristi
