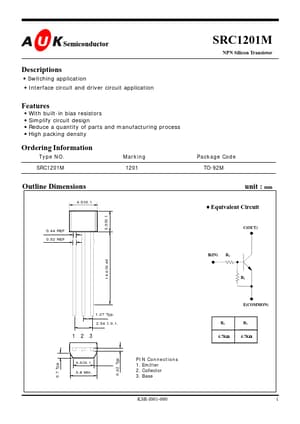

SRC1201M - NPN Silicon Transistor

AUK

Datasheet Details

Switching application Interface circuit and driver circuit application

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process High packing density Ordering Information Type NO. SRC1201M Marking 1201 Package Code TO-92M Outline Dimensions 4.0±0.1 unit : mm.
Equivalent Circuit 3.0±0.1 0.44 REF 0.52 REF C(OUT) B(IN) 14.0±0.40 R1 R2 E(COMMON) 1.27 Typ. 2.54 ± 0.1. R1 4.7KΩ R2 4.7KΩ 1 2 3 0.7 Typ. 3.0±0.1 3.8 Min. PIN Connections 1. Emitter 2. Collector 3.
