SRC1201S - NPN Silicon Transistor

AUK

Datasheet Details

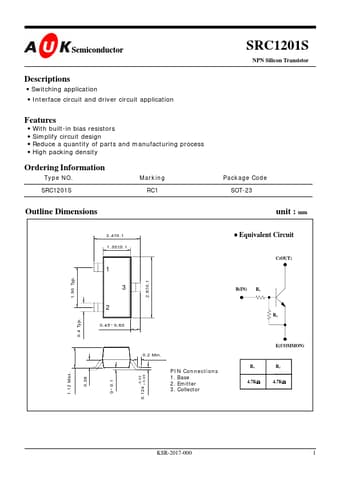

Switching application Interface circuit and driver circuit application

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process High packing density Ordering Information Type NO. SRC1201S Marking RC1 Package Code SOT-23 Outline Dimensions 2.4±0.1 1.30±0.1 unit : mm.
Equivalent Circuit C(OUT) 1 1.90 Typ. 3 2 2.9±0.1 B(IN) R1 R2 0.4 Typ. 0.45~0.60 E(COMMON) 0.2 Min. 1.12 Max. 0~0.1 0.124 PIN Connections 1. Base 2. Emitter 3. Collector R1 4.7KΩ R2 4.7KΩ.
