SRC1212UF - NPN Silicon Transistor

Product Overview

AUK

Part number	SRC1212UF
Manufacturer	AUK
File Size	46.78 KB
Description	NPN Silicon Transistor
Datasheet	SRC1212UF Datasheet

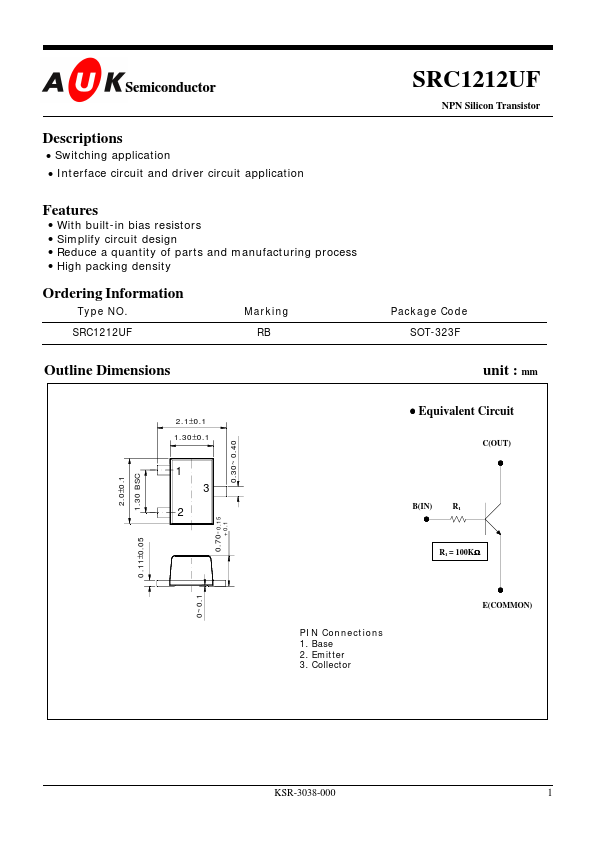

Additional preview pages of the SRC1212UF datasheet.

Switching application Interface circuit and driver circuit application

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process High packing density Ordering Information Type NO. SRC1212UF Marking RB Package Code SOT-323F Outline Dimensions 2.1±0.1 0.30~0.40 1.30±0.1 unit : mm.
Equivalent Circuit C(OUT) 1.30 BSC 2.0±0.1 1 3 0.70-0.15 2 B(IN) +0.1 R1 0.11±0.05 R1 = 100KΩ 0~0.1 E(COMMON) PIN Connections 1. Base 2. Emitter 3. Collector KSR-3038-000 1 SRC1.
